BL-R8723RB1

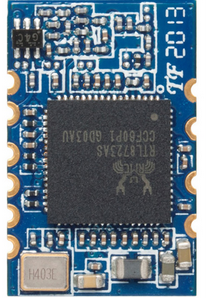

BL-8723RB1 product Accord with FCC CE and is a small size and low profile of WiFi +BT combo module
BL-R8723RB1-商品描述
BL-8723RB1 product Accord with FCC CE and is a small size and low profile of WiFi +BT combo module with LGA (Land-Gri d Array) footprint, board size is 19.5mm*12.4 mm with module height 0.6mm. It is 150 wireless USB adapter which has lower power consumption, high linearity output power, accords with IEEE802.11b/g/n, and supports IEEE802.11i safety protocol , along with IEEE 802.11estandard service quality.
参数规格：
| Item | Description |
| Protocol/standards | WIFI: IEEE 802.11b/g/n |
| BT: V2.1+EDR/BT V3.0/BT V3.0+HS | |
| Interface type | USB2.0 , PCM |
| Frequency range | 2.4~2.4835MHz |
| Channels | 1- 11 （AMerica , Canada）;1- 13 （China , Europe）; |
| 1- 14 （Japan） | |
| Data modulation | OFDM/DBPSK/DQPSK/CCK |
| Working mode | Infrastructure , Ad- Hoc |
| Transmitting rate | 135/54/48/36/24/18/12/9/6 /1M(self-adapting) |
| Spread spectrum | DSSS |
| 54/135M:-72dBm@ 10%PER;11M:-83dBm@8%PER; | |
| Sensitivity @ PER | 6 M: -85dBm@ 10%PER; 1M: -90dBm@8%PER; |
| RF Power | 135M:14dBm |
| 54 M:14dBm | |
| 11M:17dBm | |
| Throughput | 90Mbps(External 2dBi antenna ,damping |
| 40dBm in Shielding box ) | |
| Antenna connection mode | Connect to the external antenna through The half hole |
| Transmit distance | Indoor 100M, Outdoor 300M, according the local environment |
| Operating temperature | Work temperature : 0°C ~ 40°C |
| Storage temperature : -20°C ~ 70°C | |
| Operating System | Windows2000/X P/Vista/Win7/Linux/Mac |
| Working current | 180mA |
| Size(L*W* H) | 19.5* 12.4* 1.8mm |
| Chipset | RT L8723AS-AU |
结构尺寸：
