AK09911C-L

    AK09911C-L A 3-axis electronic compass IC with high sensitive Hall sensor technology.  Best adapted to pedestrian city navigation use for cell phone and other portable appliance.

简介:

     3-axis magnetometer device suitable for compass application

     Built-in A to D Converter for magnetometer data out

     14-bit data out for each 3-axis magnetic component

     Sensitivity: 0.6 µT/LSB (typ.)

     Serial interface：I2C bus interface Standard, Fast and High-speed mode (up to 2.5 MHz) compliant with Philips I2C

     Operating temperatures: -30˚C to +85˚C

     Operating supply voltage: Analog power supply +2.4V to +3.6V

     Digital Interface supply +1.65V to analog power supply voltage

     Current consumption: Power-down: 3 µA (typ.)

     Measurement: Average current consumption at 100 Hz repetition rate: 2.4 mA (typ.)

     Package: AK09911C 8-pin WL-CSP (BGA): 1.2 mm × 1.2 mm × 0.5 mm (typ.)

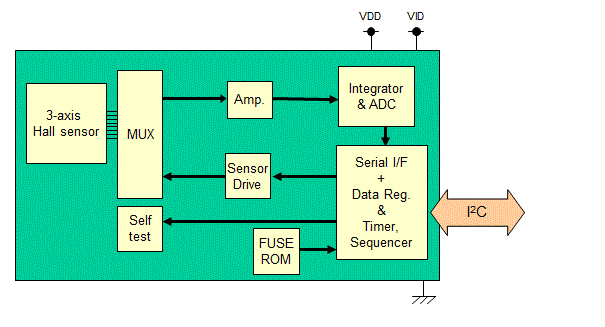

框架
